Single Flute Engraving Bit for Metal - 1/8″ Shank

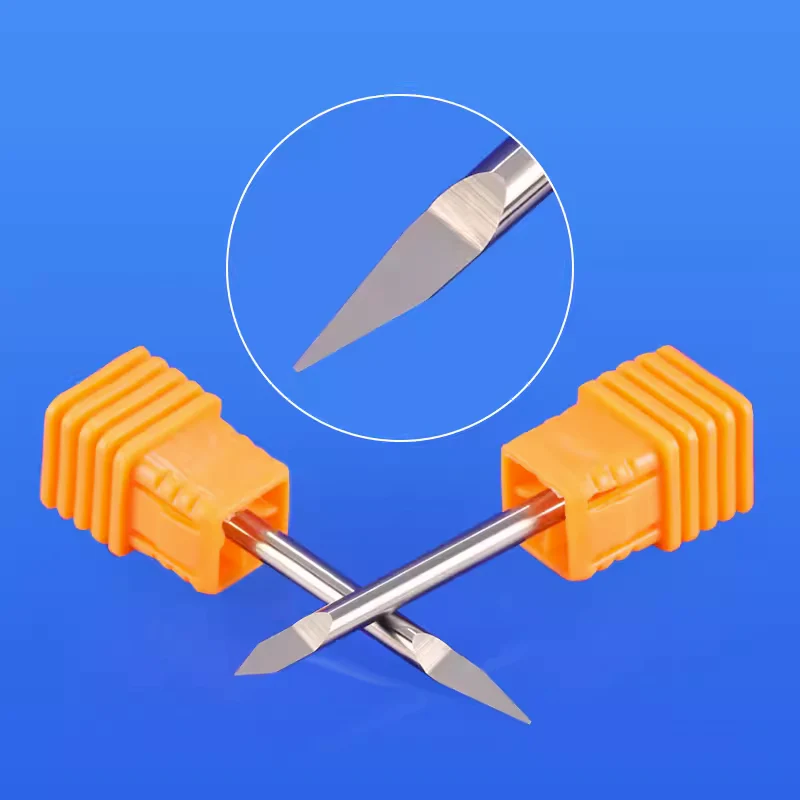

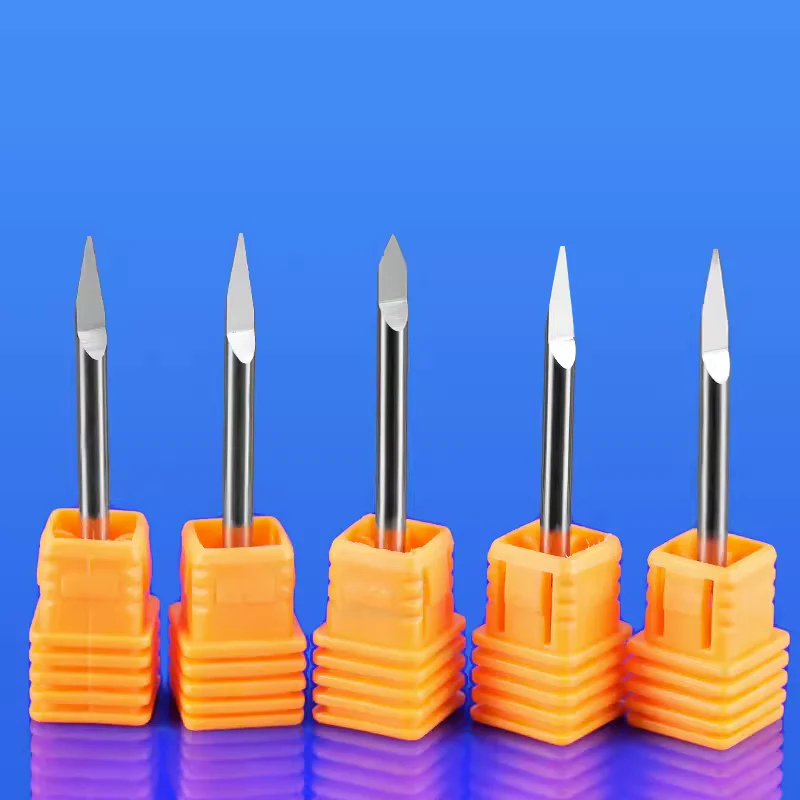

The Single Flute Engraving Bit typically features a single cutting edge that extends from the tip of the bit. This singular flute creates a clean, well-defined edge in the material being engraved, ideal for intricate detailing.
Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide
Applications:
PCB trace Isolating, Curve surface milling, Relief milling, Small text engraving, etc.
Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, PCB, etc.
Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide
Applications:
PCB trace Isolating, Curve surface milling, Relief milling, Small text engraving, etc.
Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, PCB, etc.
Tool Reference Parameters:
* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
| Tools | Aluminum | Brass | Carbon Fiber | Copper | Hardwood | PCB | Plastic | Softwood |
|---|---|---|---|---|---|---|---|---|
| 0.1mm*60° Engraving(Metal) |
RPM:12000 Feed:500 PFeed:200 DOC:0.2 |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
- |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:1000 PFeed:500 DOC:2 |
| 0.2mm*30° Engraving(Metal) |
RPM:12000 Feed:500 PFeed:200 DOC:0.2 |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
- |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:1000 PFeed:500 DOC:2 |
| 0.3mm*30° Engraving(Metal) |
RPM:12000 Feed:500 PFeed:200 DOC:0.2 |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
- |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:1000 PFeed:500 DOC:2 |
| 0.4mm*30° Engraving(Metal) |
RPM:12000 Feed:500 PFeed:200 DOC:0.2 |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
- |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:1000 PFeed:500 DOC:2 |
| 0.5mm*30° Engraving(Metal) |
RPM:12000 Feed:500 PFeed:200 DOC:0.2 |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
- |
RPM:12000 Feed:300 PFeed:100 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:0.1 |
RPM:12000 Feed:1000 PFeed:500 DOC:1 |
RPM:12000 Feed:1000 PFeed:500 DOC:2 |
