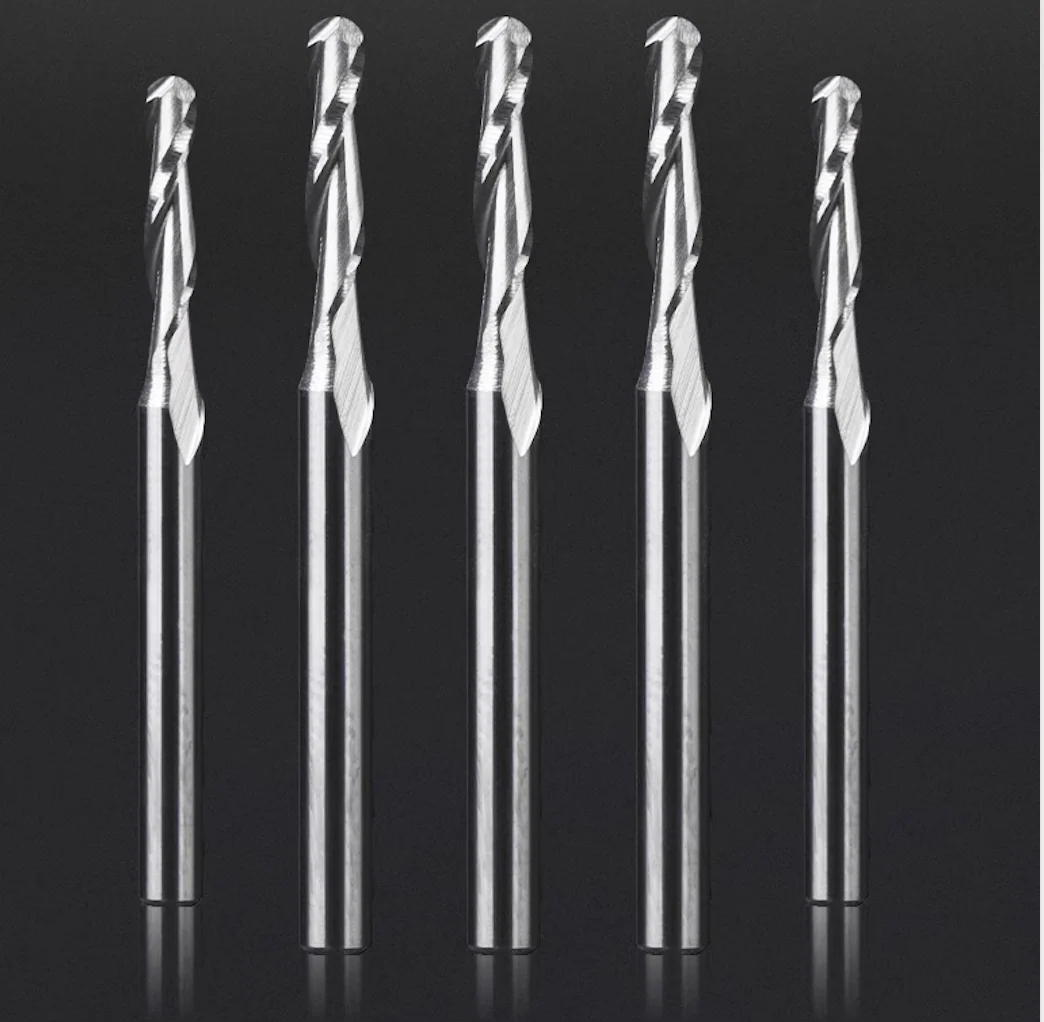

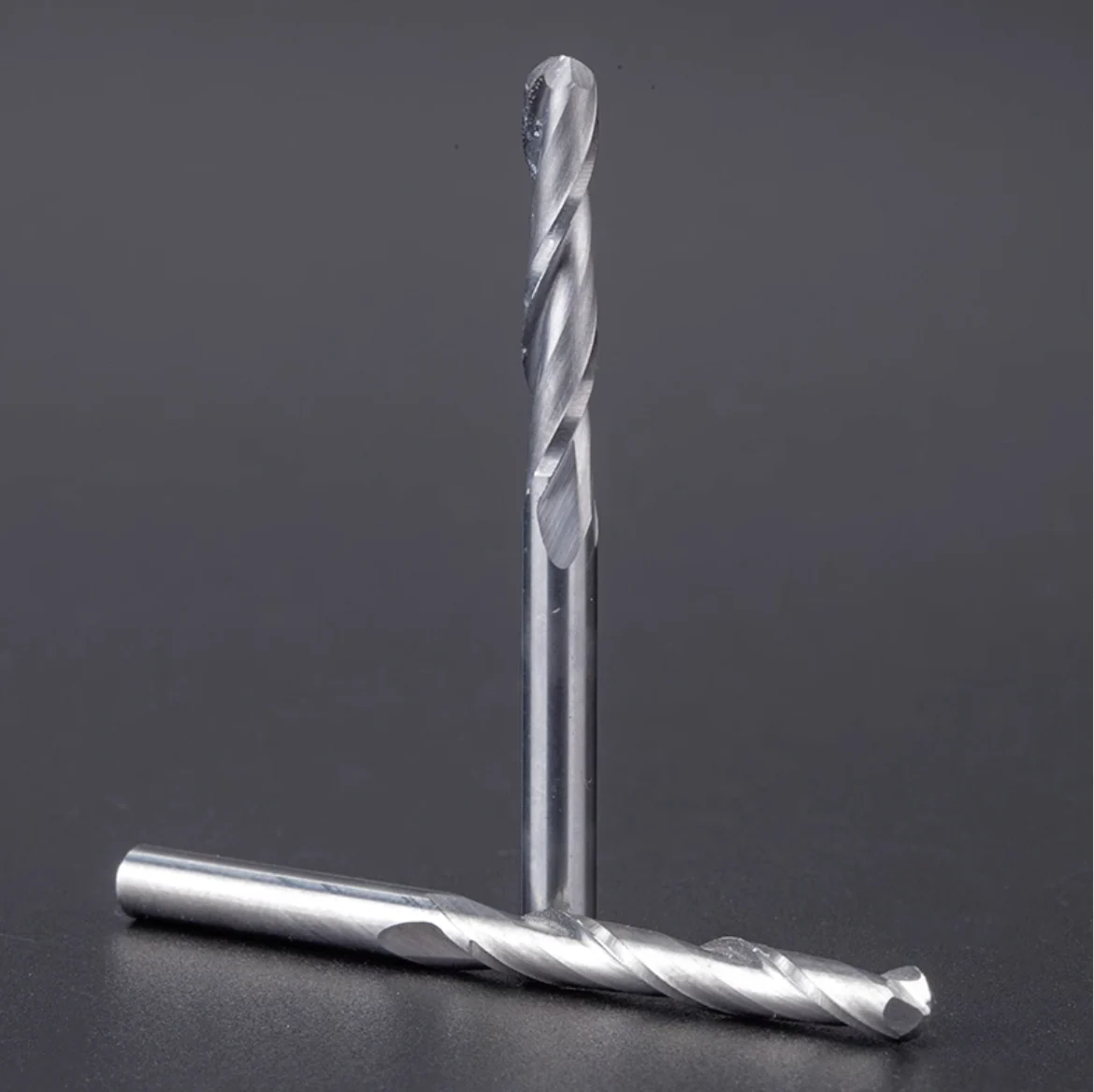

Two Flute Ball Nose Bit - 1/8″ Shank
The Two Flute Ball Nose Bit allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.
Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide
Applications:
Curve surface milling, Relief milling, etc.
Materials:
Wood, Plastics, Composite materials, etc.
Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide
Applications:
Curve surface milling, Relief milling, etc.
Materials:
Wood, Plastics, Composite materials, etc.
Tool Reference Parameters:
* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
| Tools | Aluminum | Brass | Carbon Fiber | Copper | Hardwood | PCB | Plastic | Softwood |
|---|---|---|---|---|---|---|---|---|
| 1*4mm ball nose | - | - | - | - |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
- |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
| 1.5*8mm ball nose | - | - | - | - |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
- |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
| 2*12mm ball nose | - | - | - | - |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
- |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
| 2.5*15mm ball nose | - | - | - | - |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
- |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
| 3.175*22mm ball nose | - | - | - | - |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
- |
RPM:12000 Feed:500 PFeed:200 DOC:1 |
RPM:12000 Feed:500 PFeed:200 DOC:2 |
